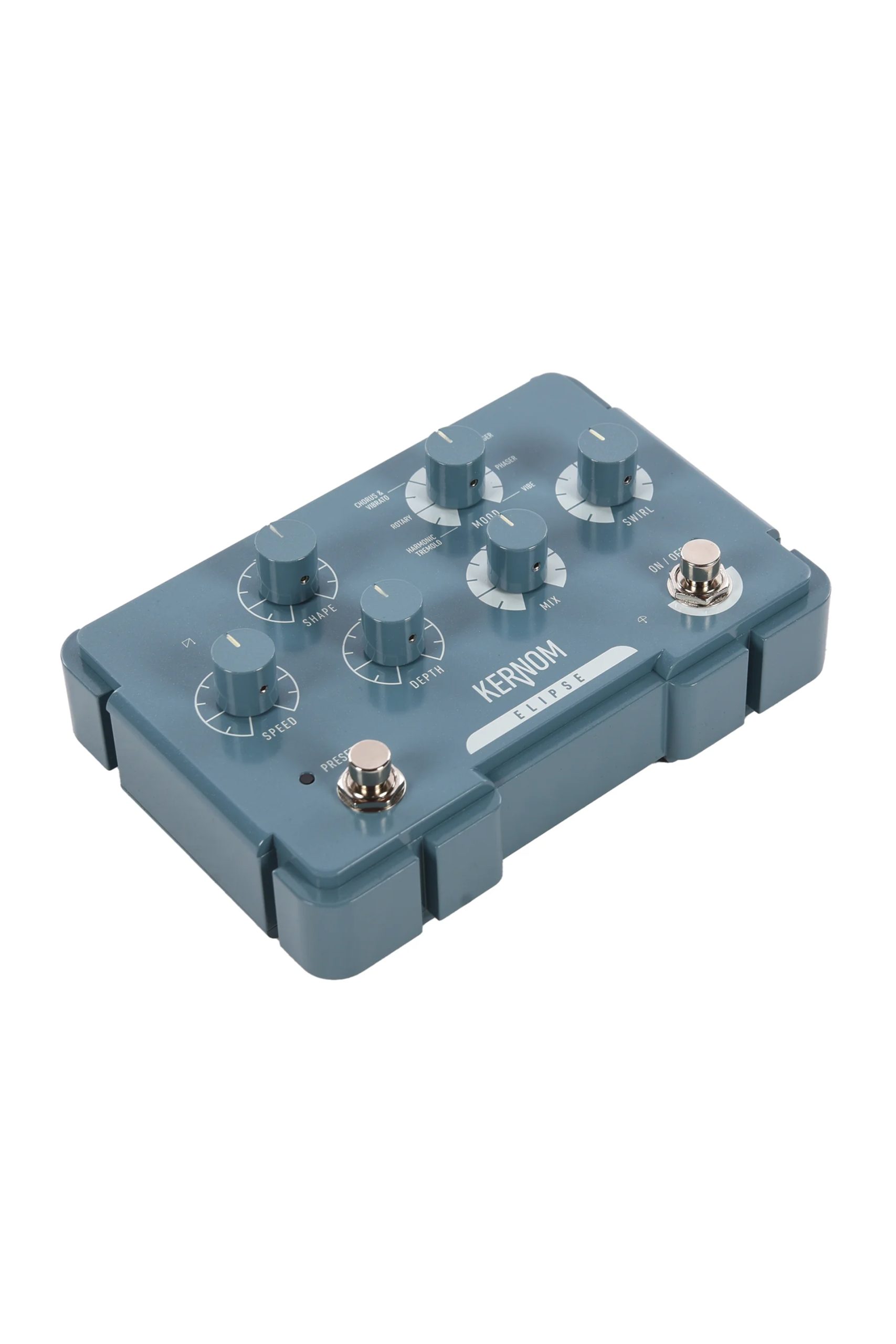

Kernom Elipse Modulation

ALL ICONIC MODULATION, ONE PEDAL
Tired of switching between multiple modulation pedals? ELIPSE combines all your favorite modulation effects—tremolo, chorus, flanger, phaser, and rotary—into one seamless, expressive pedal.

Forget preset-based limitations—ELIPSE lets you morph continuously between effects, unlocking hybrid sounds you’ve never heard before.

All Iconic Modulation Effects: Chorus, Flanger, Phaser, Tremolo, Univibe, Rotary & more
Seamless Morphing: Transition smoothly between classic and experimental effects with the MOOD knob
The SWIRL Knob – A Secret Layer of Depth – Add a secondary slow phaser or analog drive for unparalleled richness.
MIDI & Preset Control – Save and recall 128 presets, integrate with DAWs, and sync with Tap Tempo & MIDI Clock.
Expression Pedal Input – Morph between two presets in real time for ultimate live expression.

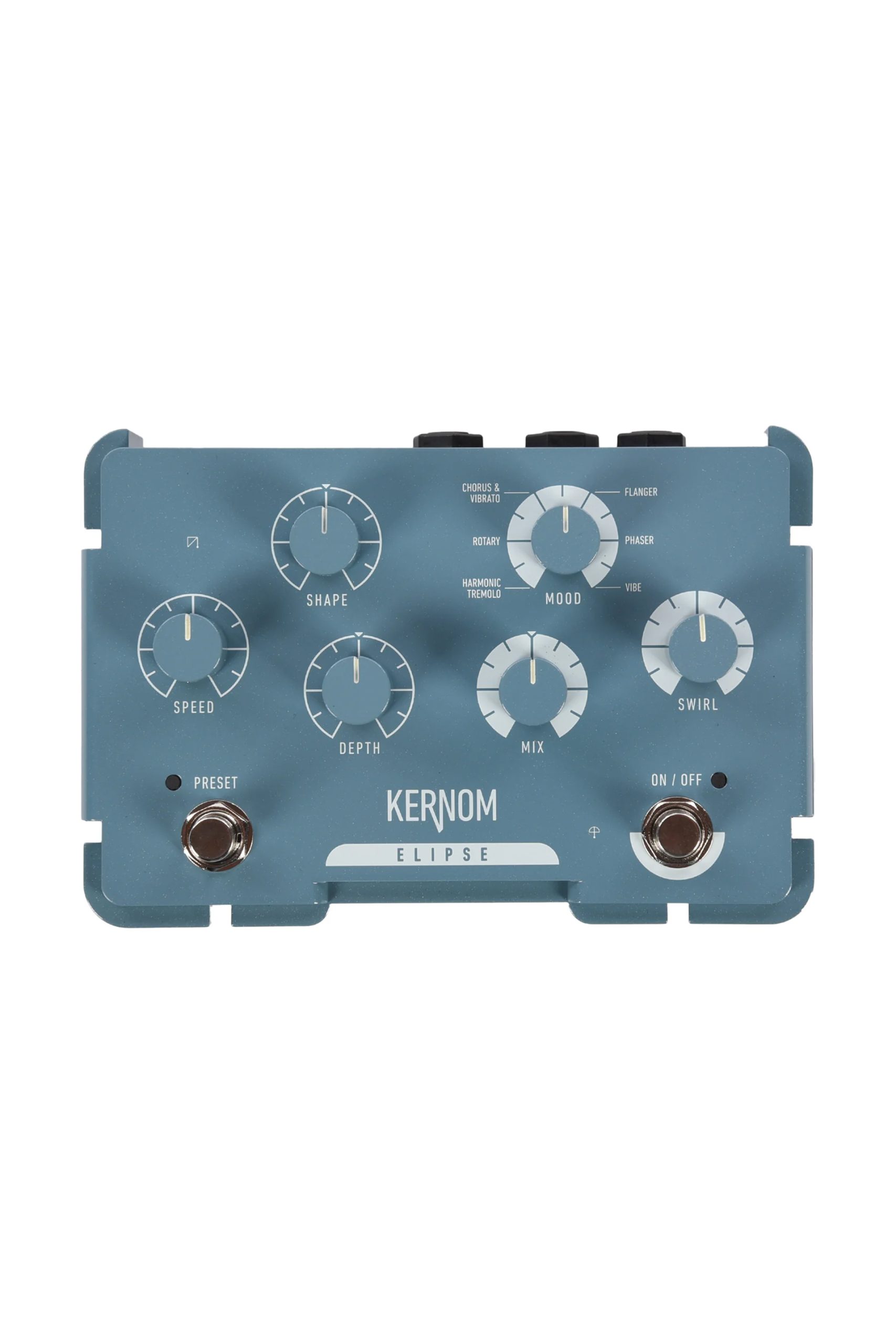

Controls

• SHAPE: SHAPE modifies the modulation waveform, with a classic triangular shape at the mid-
  position.
• MOOD: MOOD provides access to all the classic and iconic modulation effects with a single knob.
  This continuous control allows you to gradually transition between classic effects and create hybrid combinations.
• SPEED: The SPEED adjusts the modulation rate, from ultra slow texture to fast ringing oscillations.
• SWIRL: SWIRL adds a secondary layer to the main effect. The first part of the knob’s sweep
  introduces a slow phaser, while the second part adds a drive effect.
• DEPTH: DEPTH controls the intensity of the modulation effect.
• MIX: MIX controls the blend between wet and dry signals.
  At the mid-position, it provides a 50/50 mix for classic effects.
• PRESET: 1 onboard preset, 128 presets accessible via MIDI.
• True bypass with relay.
• Expression pedal Input.

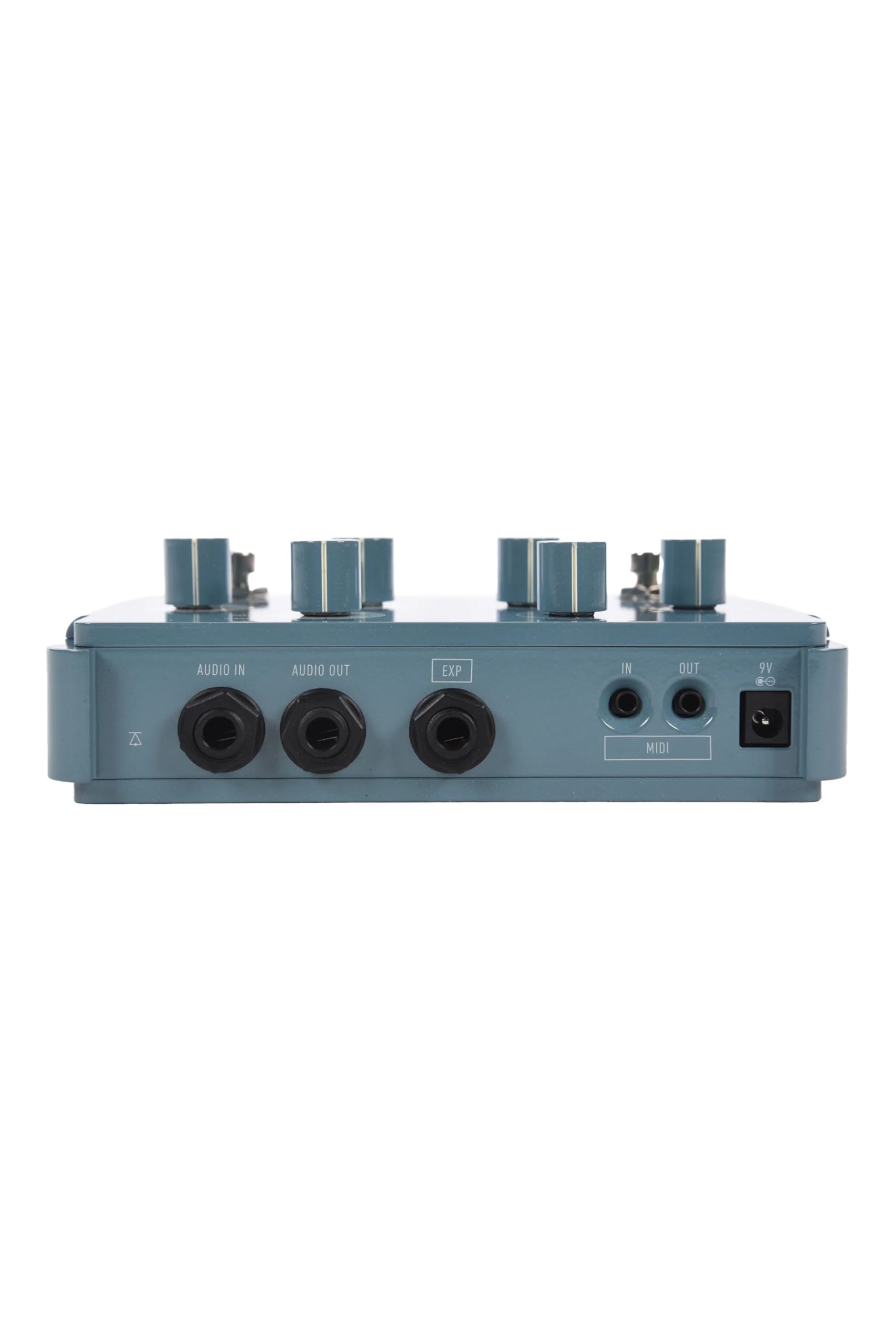

• MIDI in and OUT with full control OVER all the parameters.

SPECIFICATIONS
INPUT IMPEDANCE:  1Meg Ohm
OUTPUT IMPEDANCE: 100 Ohm
BYPASS SWITCHING: True Bypass (electromechanical relay switching)
DIMENSIONS:  11.2 cm deep x 16.4 cm wide x 5.2 cm tall (4.4 inches deep x 6.5 inches wide x 2 inches tall).
WEIGHT: 850 g (1,8 lbs)
BUILD MATERIAL: 5mm thick aluminium casing with sparkly duck blue and high grade painting surface
CAPABILITIES: Designed for both guitar, bass, synth and studio.

MIDI CABLE REQUIREMENTS: Use a type A mini jack TRS MIDI cable.
POWER ADAPTOR REQUIREMENTS: Use an adaptor (not included) with the following rating: 9VDC center negative. (150mA minimum, 200mA or more recommended.)
