Free Plek Included with this Instrument! Have the assurance that your new guitar will play the best it can with this premium setup. With precision fret leveling and extreme attention to detail, there is no compromise with Plek. To learn more about Plek, give us a call at 740-522-0277!

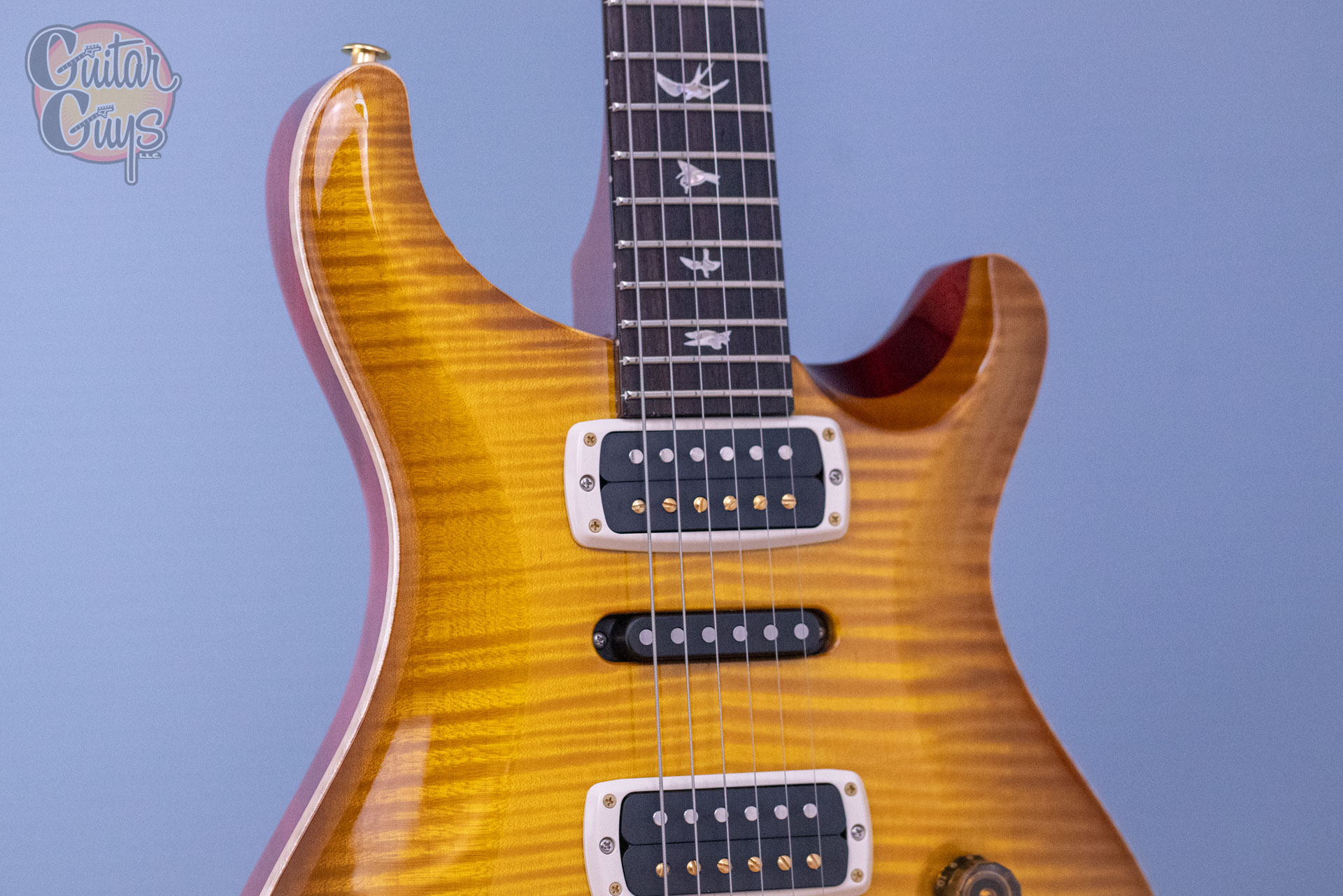

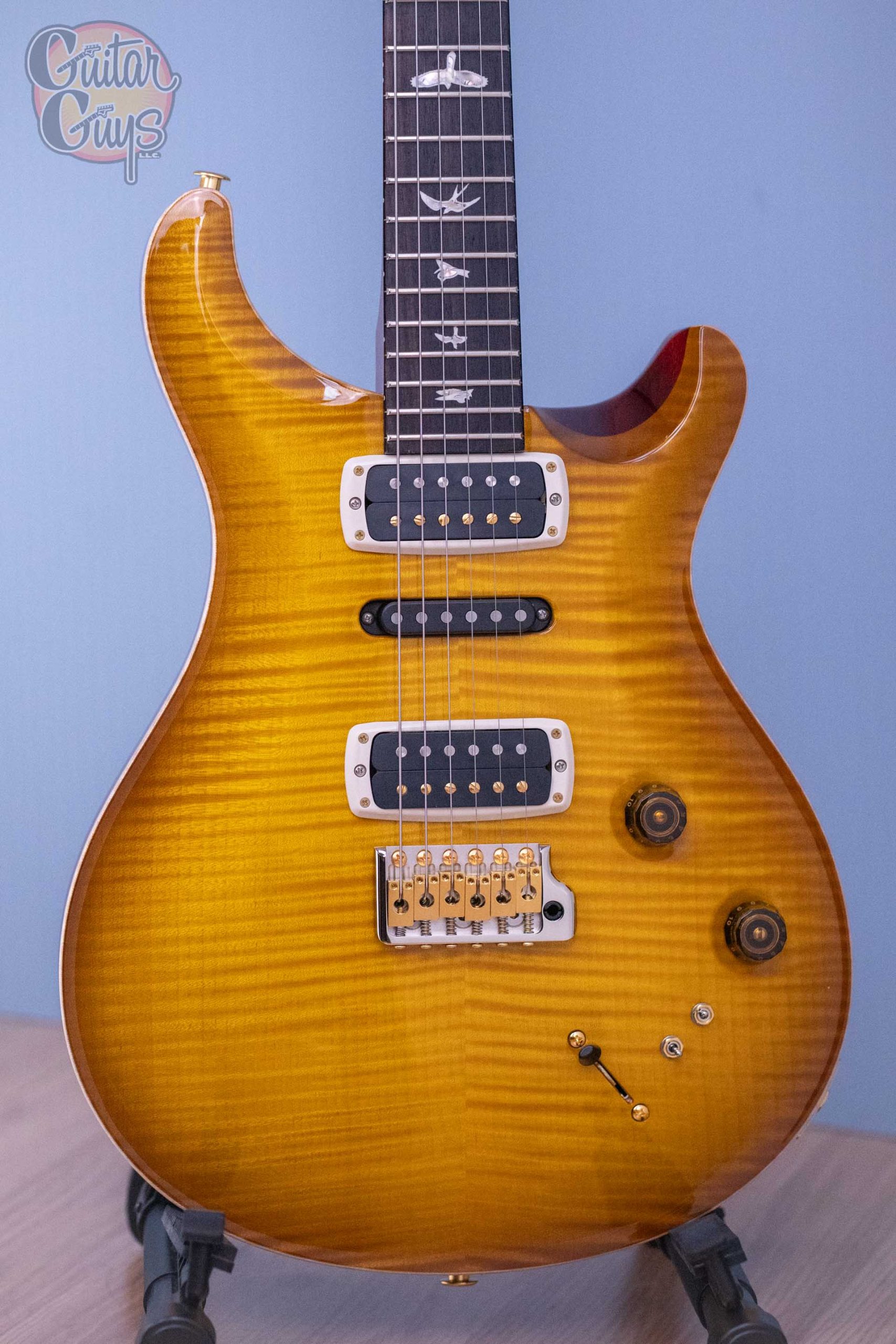

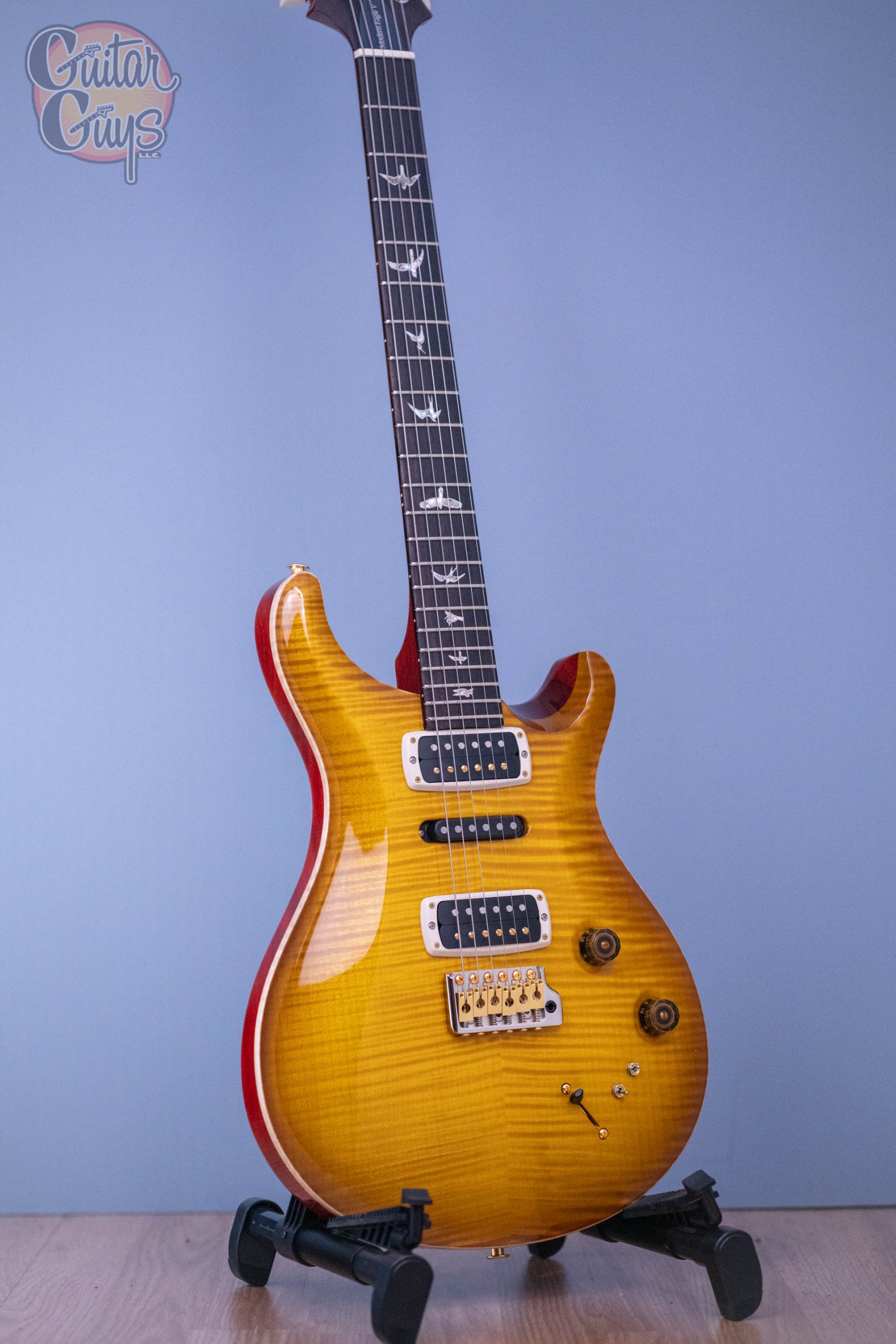

The Modern Eagle V is an innovative instrument that offers highly musical tones for both recording and playing live. Utilizing a hum/single/hum (five-coil) pickup layout and unique electronics configuration, the Modern Eagle V gives players a vast array of tones in one guitar. The 5-way blade switch selects the pickups in intuitive groupings: treble, treble and middle, middle, middle and bass, and bass. There is a single volume and a push/pull tone control that activates both humbuckers when engaged; this allows players to access all three pickups simultaneously. Finally, the mini toggles allow players to individually tap the humbucker coils, for additional single-coil sounds. This electronics design puts a whole set of classic and new tones at your fingertips.
Additional appointments include a maple top and mahogany back, a 22 fret, 25” scale length, Pattern mahogany neck with rosewood fretboard, bone nut, and PRS patented Gen III tremolo.
“Modern Eagle models have always been built to stand up to history while celebrating tonewoods and the discovery of new tones. The Modern Eagle V is a sophisticated instrument not only in its craftsmanship but in its electronic and mechanical design,” said Paul Reed Smith. “We’ve refined the pickup tones and are pleased to now add it to the Core lineup.”
For 2024, PRS Guitars is updating the tuning machines on many of our Core guitars. While, aesthetically, our new Wing buttons are designed to echo the 12th fret bird wingspan design, they were first and foremost designed for tonal reasons all the way back in 1982. Because these buttons are lighter weight than their metal predecessors, they are subtracting less energy from the vibrating strings, thus helping the guitar ring longer and at a more musical note.
Weight: 7lbs 13oz
BODY

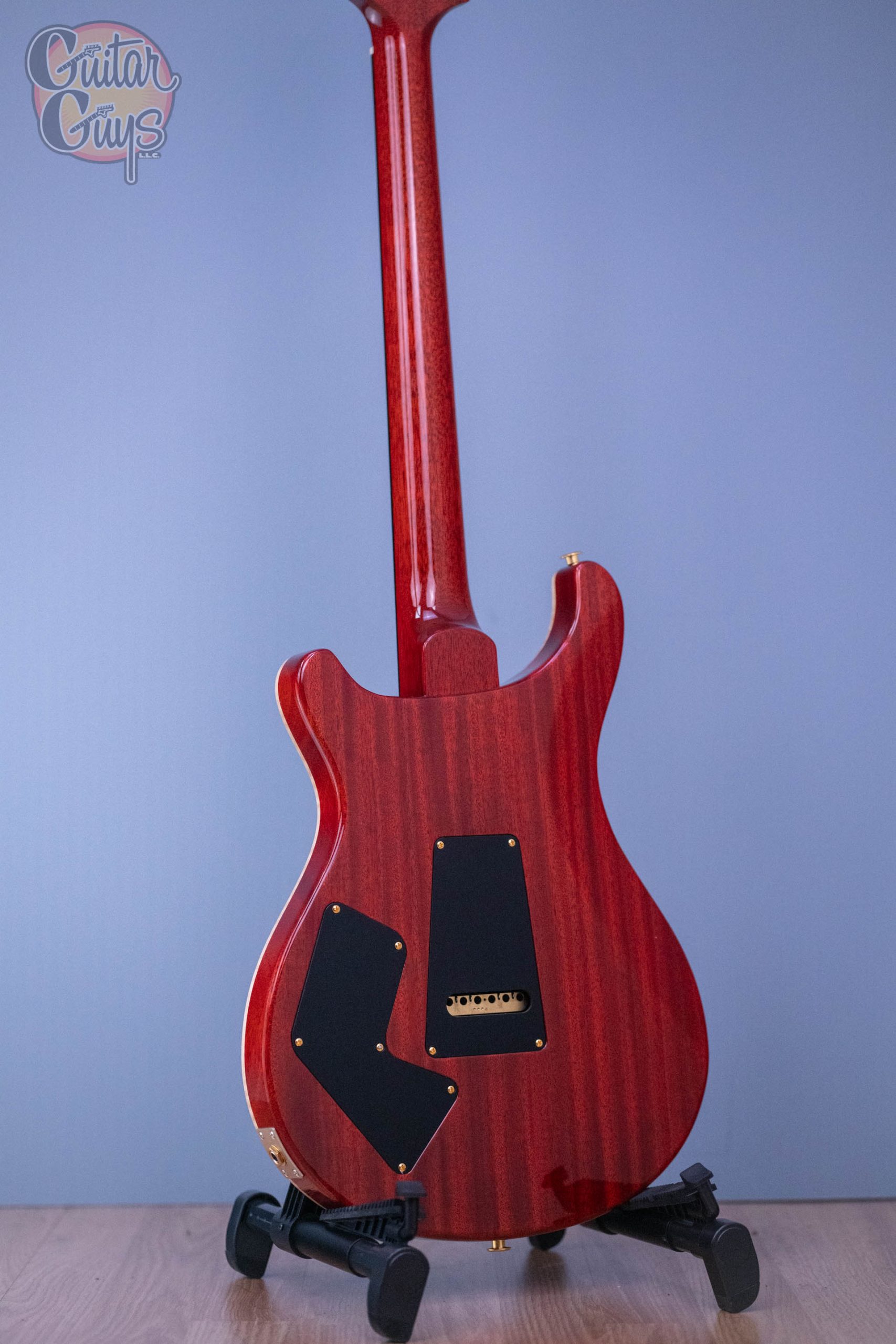

Body Construction
Solidbody
Top Wood
Maple
Back Wood
Mahogany
Top Carve
Violin
NECK
Number of Frets
22
Scale Length
25″
Neck Wood
Mahogany
Neck Construction
One-Piece
Truss Rod
PRS Double-Acting
Neck Shape
Pattern
Neck Depth at the 1/2 Fret
7/8″
Neck Depth at the 12 1/2 Fret
61/64″
Neck Width at the Nut
1 11/16″
Neck Width at the Body
2 1/4″

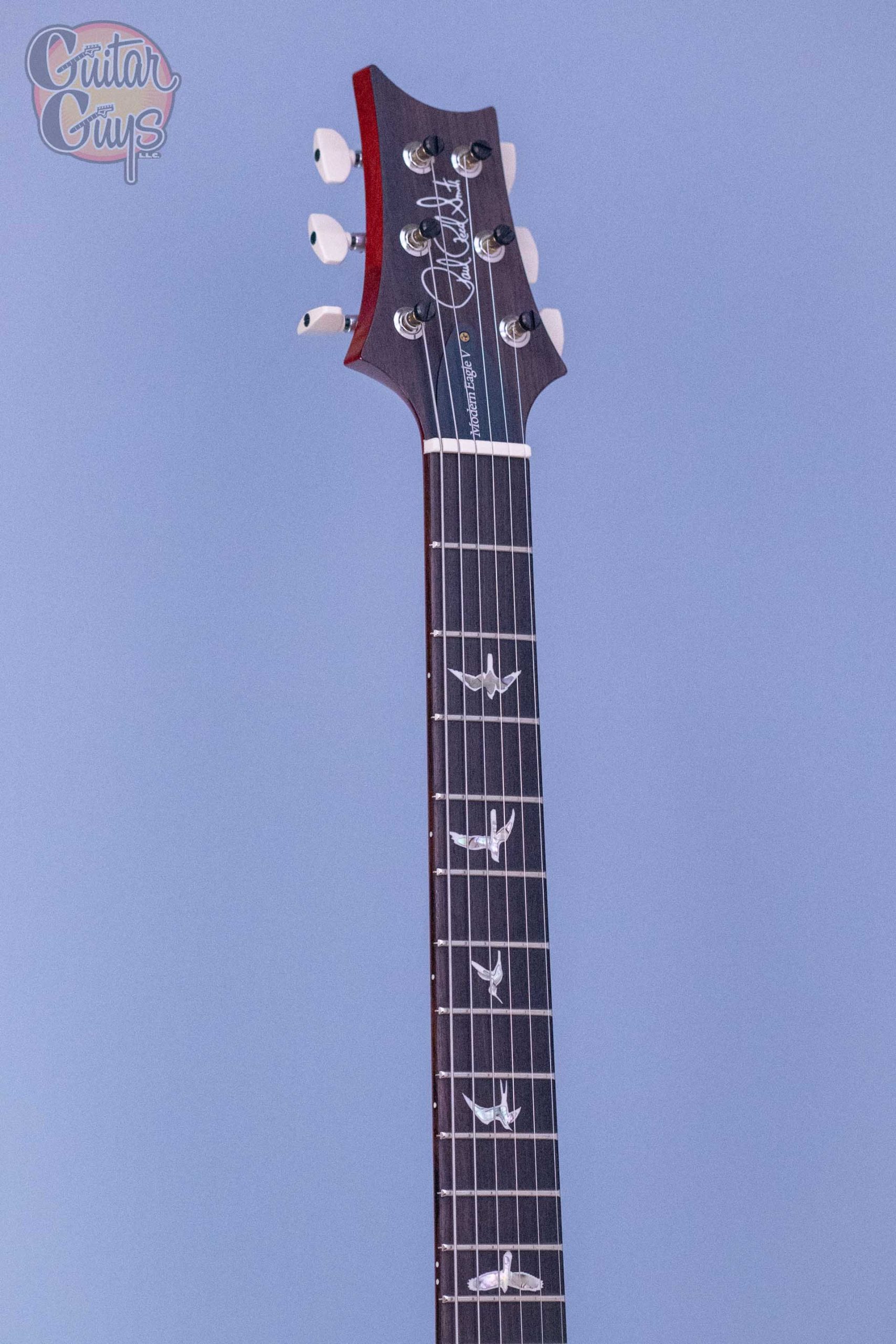

Fretboard Wood
Rosewood
Fretboard Radius
10″
Fretboard Inlay
Birds
Headstock Logo
Signature, Inlaid
NECK/BODY ASSEMBLY
Neck/Body Assembly Type
Set
FINISH
Finish Type
High-Gloss Nitro
HARDWARE

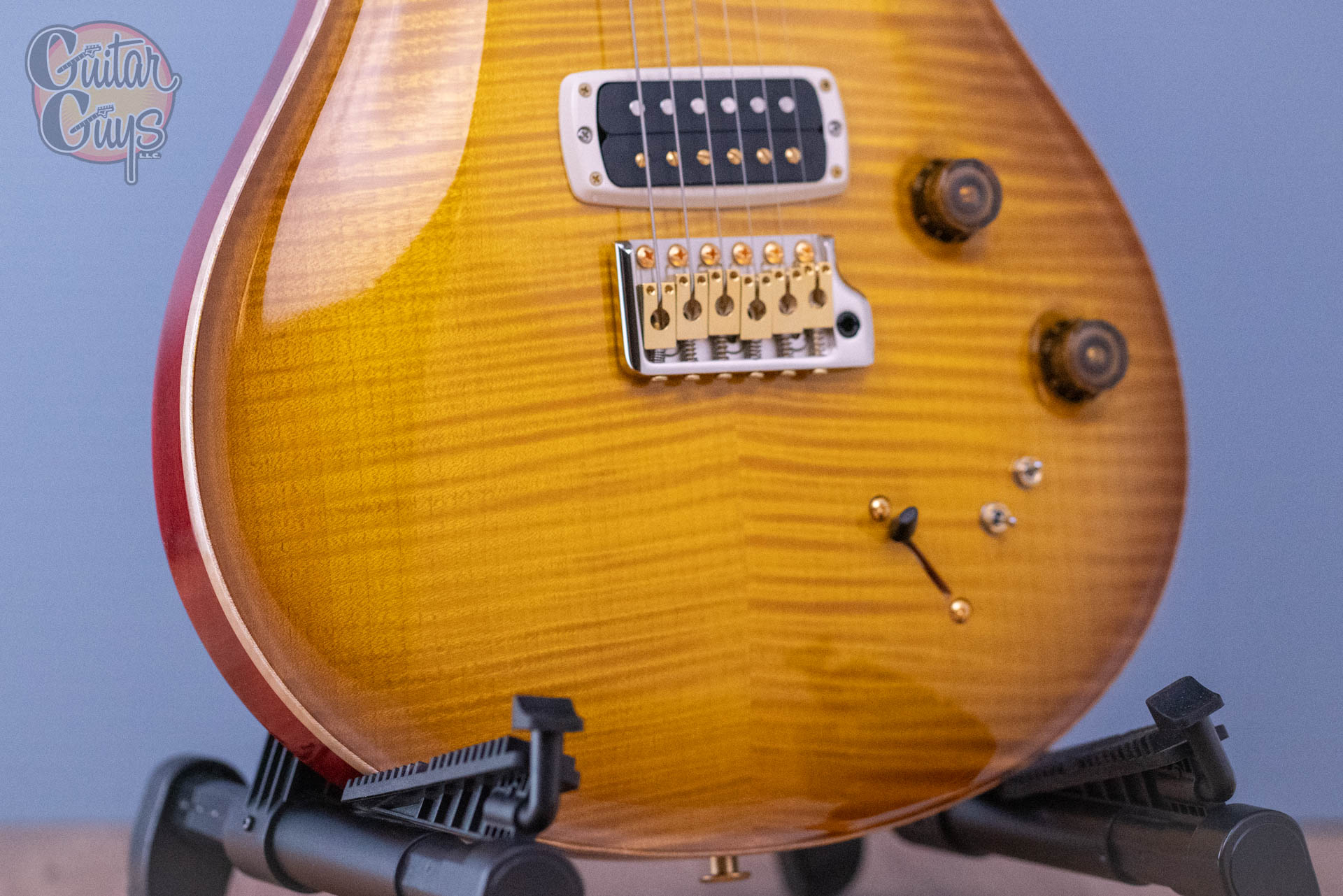

Bridge
PRS Patented Tremolo, Gen III

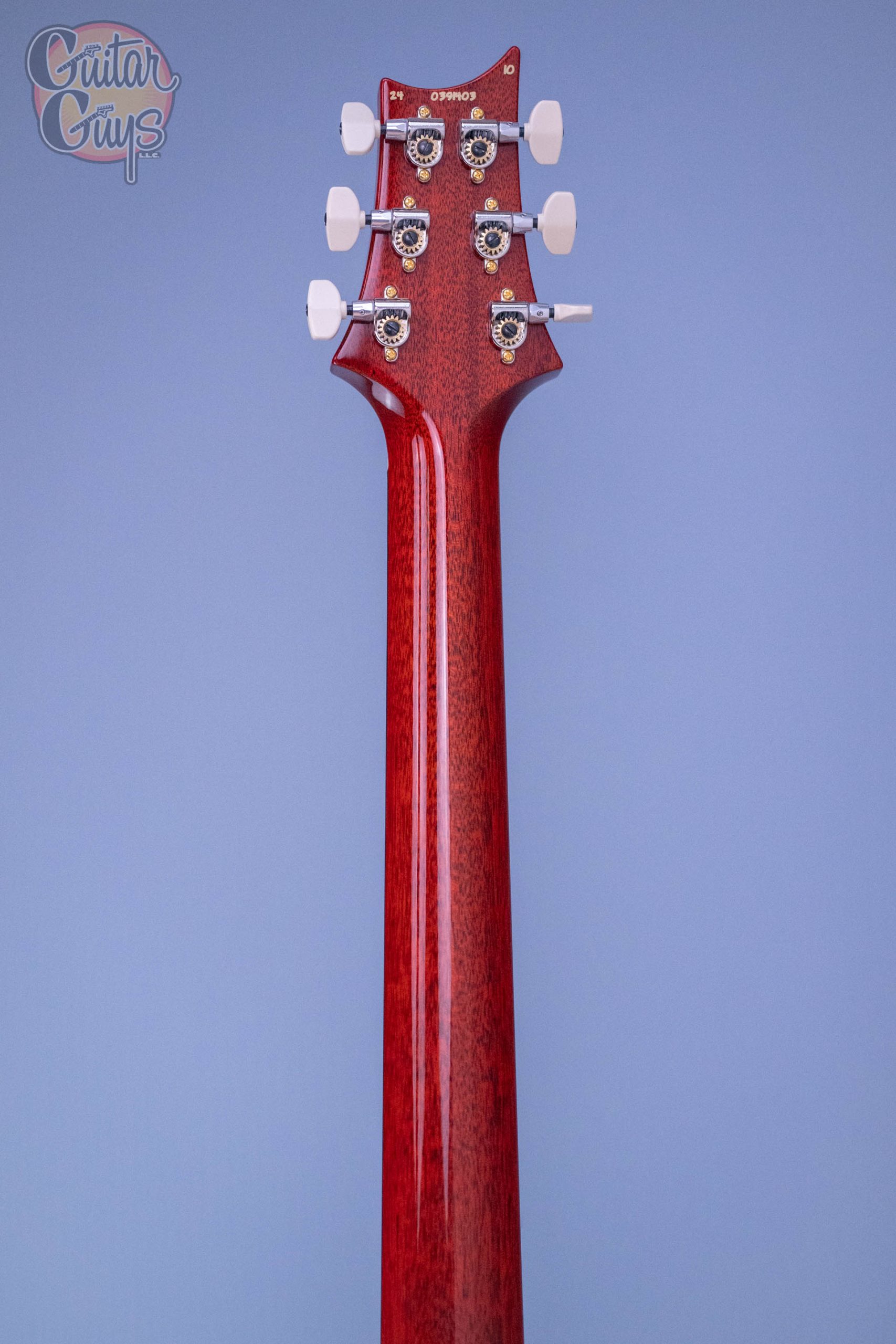

Tuners
PRS Phase III Locking Tuners with Wing Buttons
Hardware Type
Nickel
Nut
Bone
Truss Rod Cover
“Modern Eagle V”
ELECTRONICS
Treble Pickup
TCI
Middle Pickup
NS-01
Bass Pickup
TCI
Controls
Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle Coil-Tap Switches
ADDITIONAL INFO
Strings
PRS Signature 10-46
Tuning
Standard (6 String): E, A, D, G, B, E
Case
Hardshell Case
