Yamaha DBR12 Powered 12″ Speaker

Yamaha’s DBR12 powered speaker ushers in a new era of high-performance, grab-and-go PA. Packing a potent 1,000W amplifier and custom-designed 12″ woofer, the DBR12 cranks out a whopping 131dB of full-range sound. Despite its formidable output, this revolutionary speaker tips the scales at under 35 pounds, courtesy of a lightweight yet durable enclosure equipped with ergonomic handles. The DBR12 is Yamaha’s most portable powered speaker that harnesses the same cutting-edge DSP and amplification technology as their professional DSR and DXR series.

High-Efficiency 1,000W Amplifier

At the heart of the DBR12 is a lightweight, Class-D amplifier that churns out 1,000W of power with remarkable clarity and precision. This high-efficiency design, combined with Yamaha’s optimized DSP algorithms, enables the DBR12 to achieve arena-worthy volume levels without sacrificing accuracy or overtaxing its components.

Custom-Designed 12″ Woofer and 1.4″ Tweeter

Yamaha developed the DBR12’s woofer and tweeter in-house to deliver the purest, most natural sound possible at any volume. The rigid, high-power woofer pumps out tight, defined bass with minimal distortion. Paired to a 1.4″ compression driver and precision waveguide, the tweeter reproduces midrange and high frequencies with stunning resolution.

Onboard 2-Channel Mixer

Despite its compact size, the DBR12 incorporates a built-in 2-channel mixer for blending multiple inputs. Channel one features both XLR and 1/4″ inputs for microphones and line-level devices. Channel two provides 1/4″, RCA and 3.5mm inputs, allowing you to connect everything from keyboards and electronic drums to MP3 players and laptops. Select either the CH1+2 mixed output or CH1 thru output depending on your needs.

Lightweight, Durable Enclosure

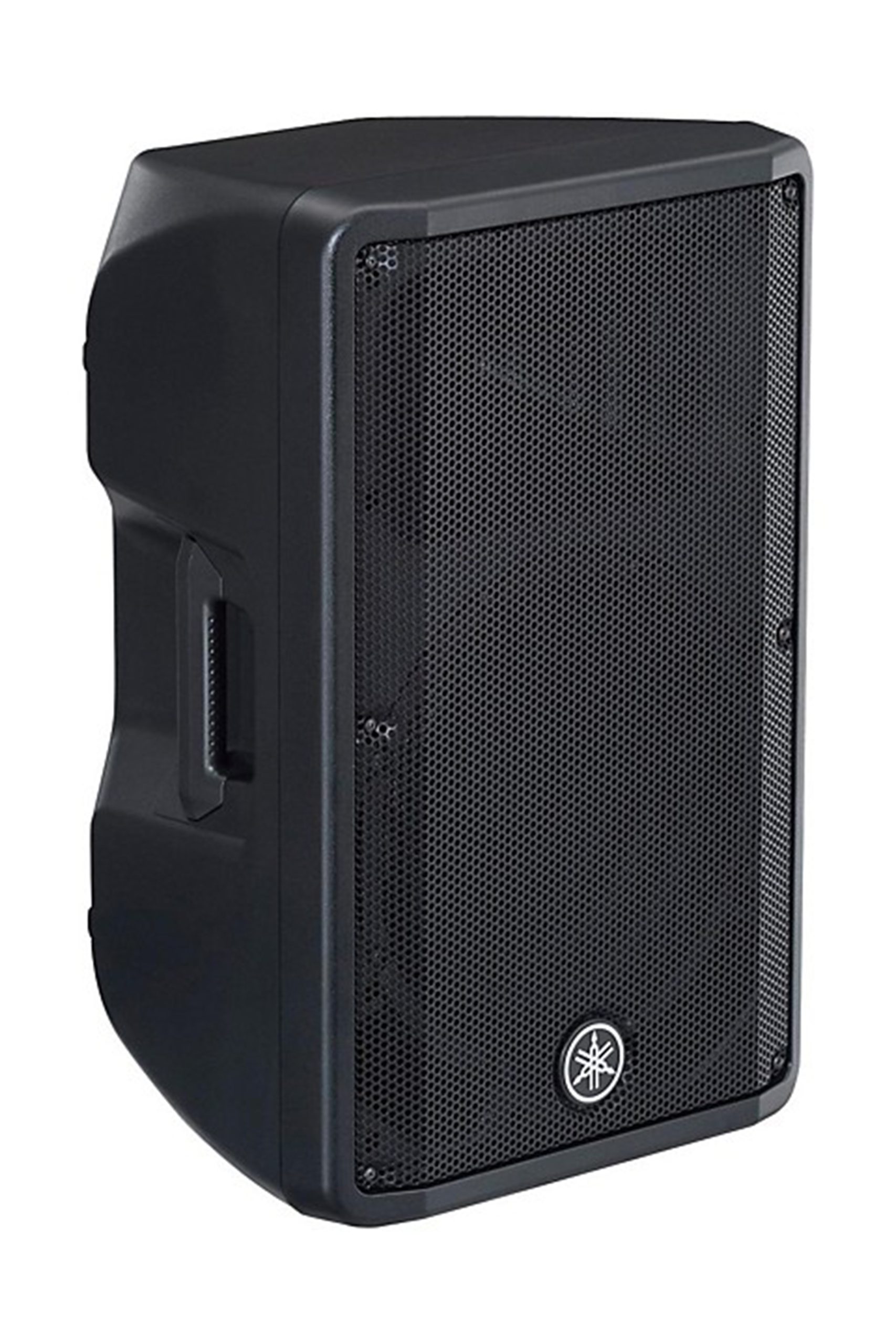

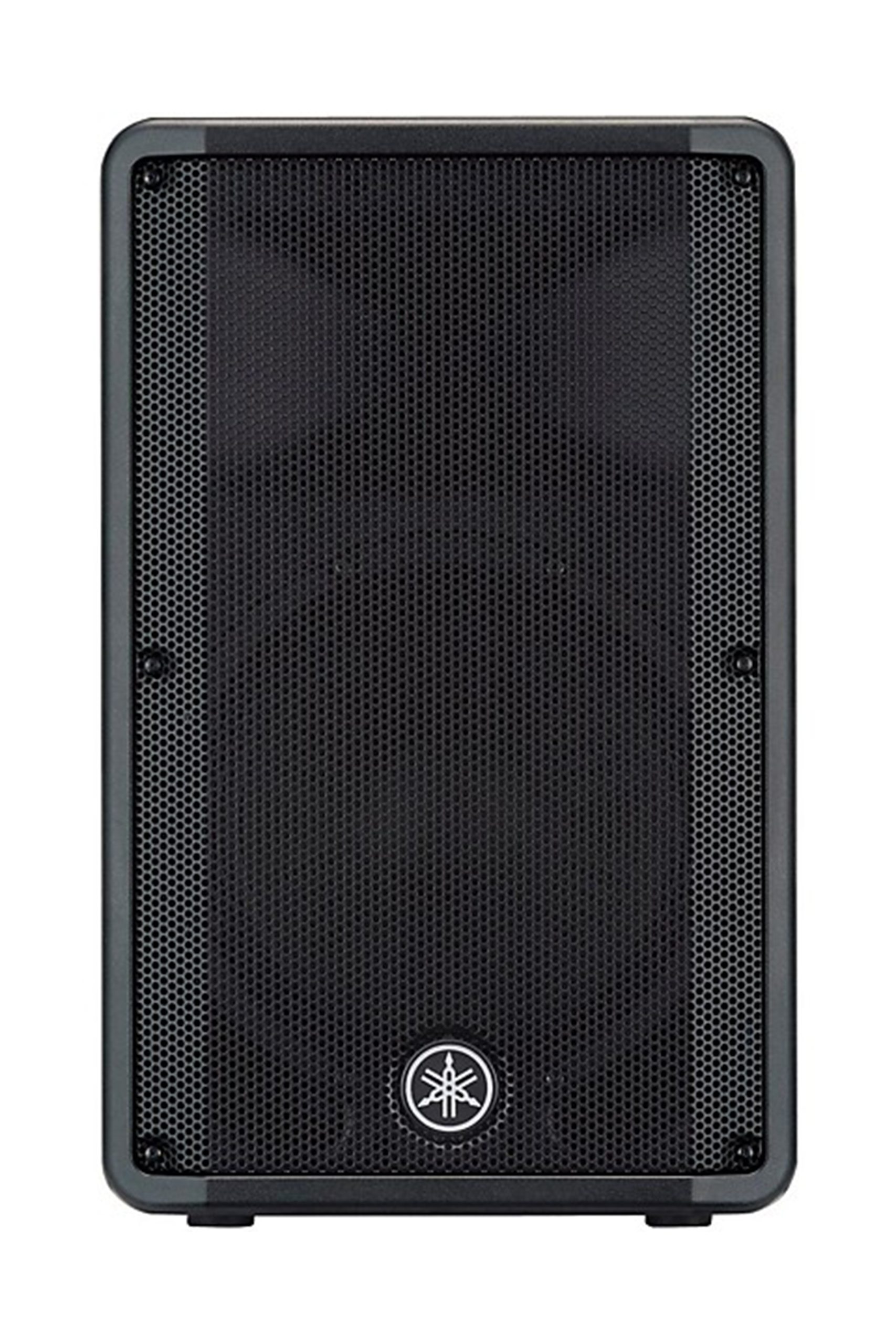

Yamaha designed the DBR12’s plastic enclosure to be as lightweight, portable and road-ready as the components inside. The wedge-shaped cabinet can be set up and torn down in minutes. M8 rigging points allow for permanent installation, while the 50-degree angle provides ideal floor monitor positioning. A rugged steel grille protects the woofer and tweeter and ergonomic handles make transporting the DBR12 a breeze.

• Type: 2-way, Biamp powered speaker, Bass-reflex type:
• Frequency range (-10dB): 52Hz–20kHz
• Nominal coverage, H: 90º, V: 60º
• Components: Diameter: 12″ cone, Voice Coil: 2″, Magnet: Ferrite
• HF: Diaphragm: 1.4″, Type: 1″ throat compression driver, Magnet: Ferrite
• Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)
• Output power: Dynamic: 1,000W (LF: 800W, HF: 200W)/Continuous: 465W (LF: 400W, HF: 65W)
• Maximum output level (1m; on axis): 131dB SPL

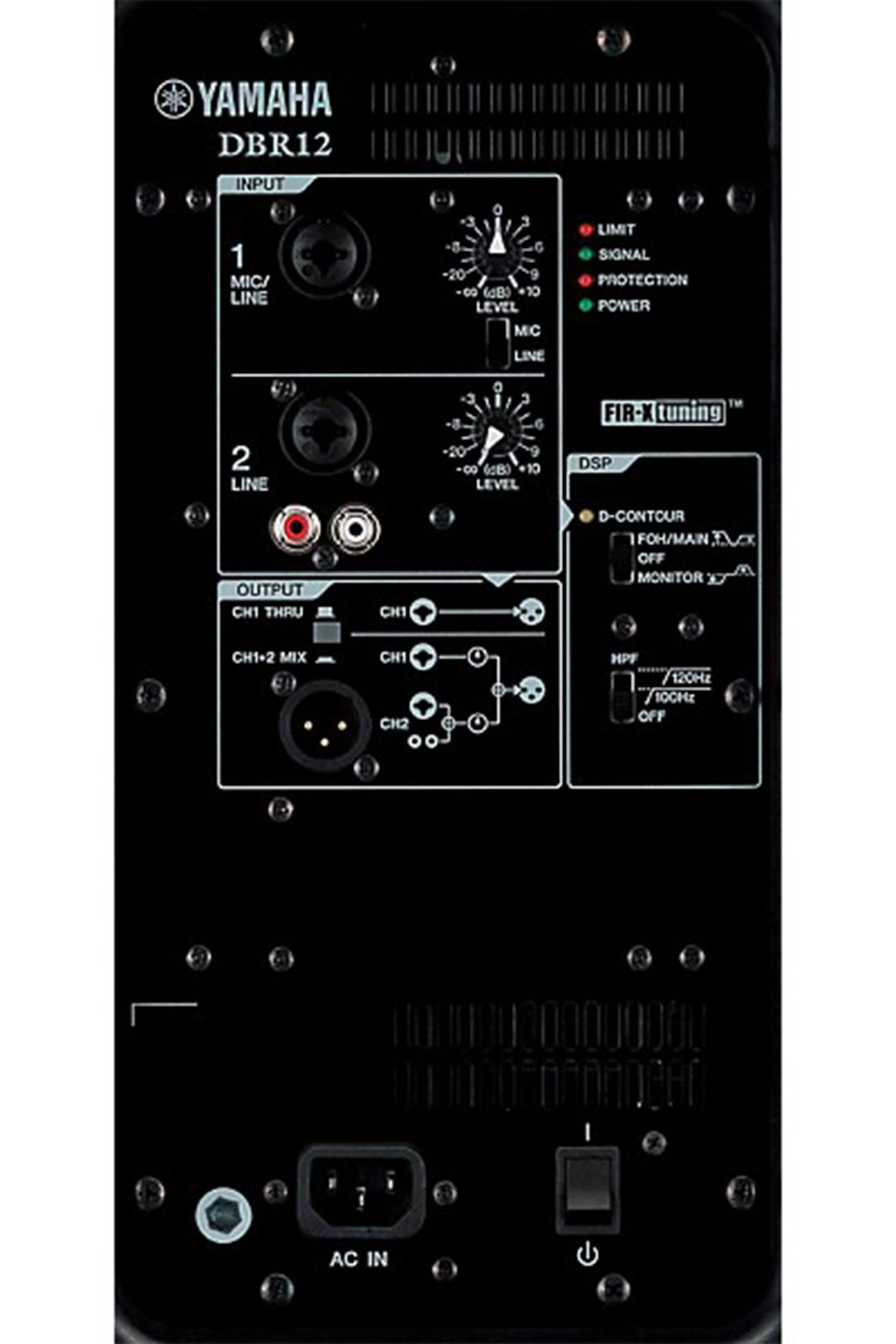

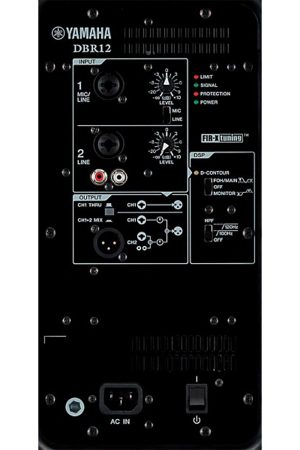

• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Heat dissipation: Fan cooling, 4 speeds
• Power requirements: 100V, 100–120V, 220–240V, 110/127/220V (Brazil), 50/60Hz
• Power consumption: 74W (1/8 Power Consumption), 18W (Idle)
• Cabinet material: Plastic
• Finish: Black
• Handle: Side x 2
• Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
• Pole socket: 35 mm (Bottom x 1)
• Dimensions: 376 mm (14.8″)
• H: 601 mm (23.7″)
• D: 348 mm (13.7″)
• Net weight: 15.8 kg (34.8 lb.)
